REV-S2988G Series
The S2988G series is a new generation of L2 access layer REV switches with 1/10GE SFP+ Uplink-ports. Port capacity and functionality of S2988G series switches provides the ability to build Gigabit access level in enterprise networks and internet service providers networks.
Security
The S2988G series switches provide a wide range of security features for both service providers and enterprise networks. Hardware Access Control Lists (ACLS) can filter traffic by L2-L4 header fields without performance brake. MAC-IP-Port binding functionality helps to protect the network from IP/MAC address spoofing by clients. Support for 802.1x and MAB protocols provides authentication of devices connected to the network.
Main features
- 1/10GE SFP+ Uplink ports
- Build-in power surge protection on each port
- VSF HA stacking support
- Built-in surge protection on all copper ports
- The availability of models with redundant power supply (RPS/UPS)
- USB-port for connecting external drives
- Cisco-like CLI and standard REV Private MIB
- Support for L2 redundancy protocols STP/RSTP/MSTP/ ERPS(+CFM)/MRPP
- QinQ Port-based/Selective support
- IPv6/Dualstack IPv4/IPv6 support
High performance
S2988G series switches are built with modern chipsets and have a non-blocking switching matrix that allows all switch ports to operate simultaneously at full speed, guaranteeing high performance and minimal network latency.

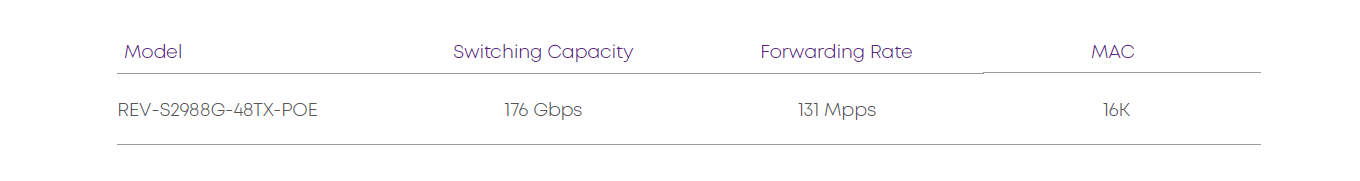

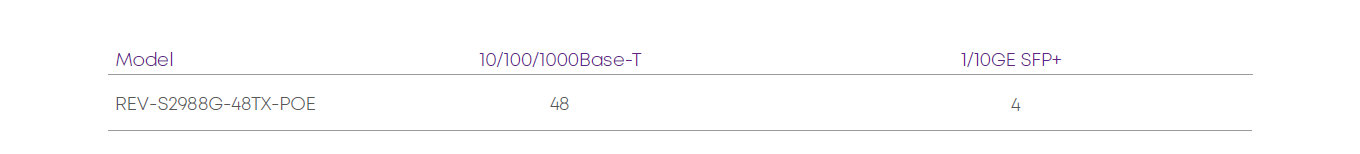

Switch Models
The series switches are equipped with 1/10GE SFP + Uplink ports and 10/100/1000Base-T Downlink ports. This allows the S2988G series to be used for building «fair» gigabit access where the Uplink port bandwidth cannot be fully occupied by a single user with a gigabit, tari .
